CA Current Transformer
CA Current Transformer

$1.2/per CA-MES62/30 100/5A 1cl.hottest model in Europe,South Africa,Russia Market  Samples free!
NAME:CA/CP-CURRENT-TRANSFORMER


CA/CP seRIES current transformer total 10specifications is compact smaller than other models with the current ratio of the tranformer issamll,clamshell-style terminal cover is well protected by the second terminal.with related accessories, you can use DIN rail mounting,acourrent from 5A to 3000A.

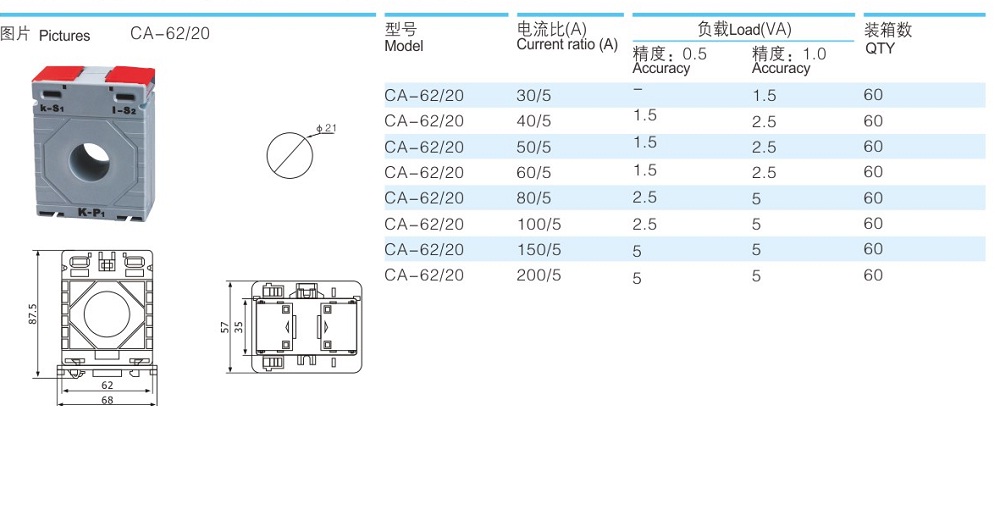

CURRENT TRANSFORMERS CA/CP-62/20

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security

30A-200A
5A,1A
VDE0414,BS7626,IEC44-1
0.72/3KV
50-60Hz
2.5VA,5VA,10VA,15VA
0.5,1.0
Ith=60×Ih
FS<5

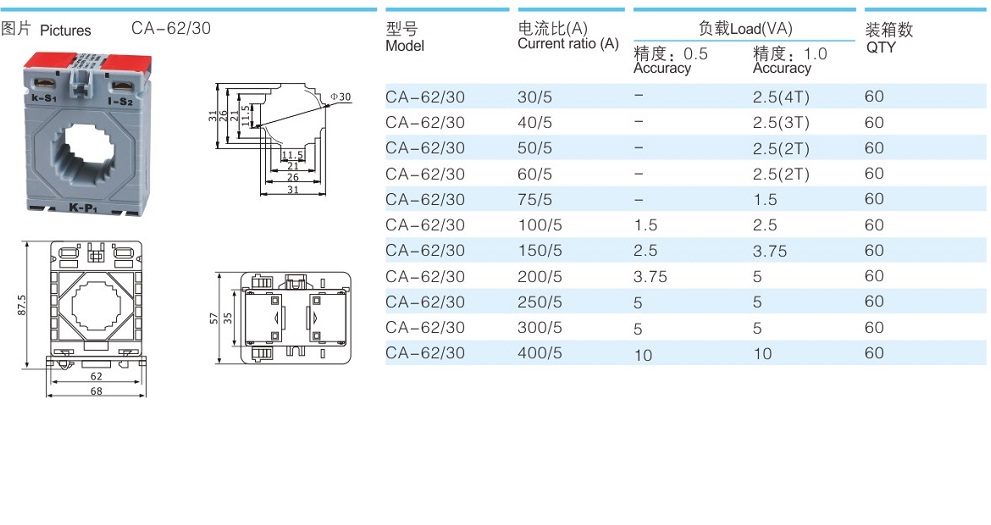

 CURRENT TRANSFORMERS CA/CP-62/30

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security

30A-400A
5A,1A
VDE0414,BS7626,IEC44-1
0.72/3KV
50-60Hz
2.5VA,5VA,10VA,15VA
0.5,1.0
Ith=60×Ih
FS<5



 CURRENT TRANSFORMERS CA/CP-62/40

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security

60A-600A
5A,1A
VDE0414,BS7626,IEC44-1
0.72/3KV
50-60Hz
2.5VA,5VA,10VA,15VA
0.5,1.0
Ith=60×Ih
FS<5

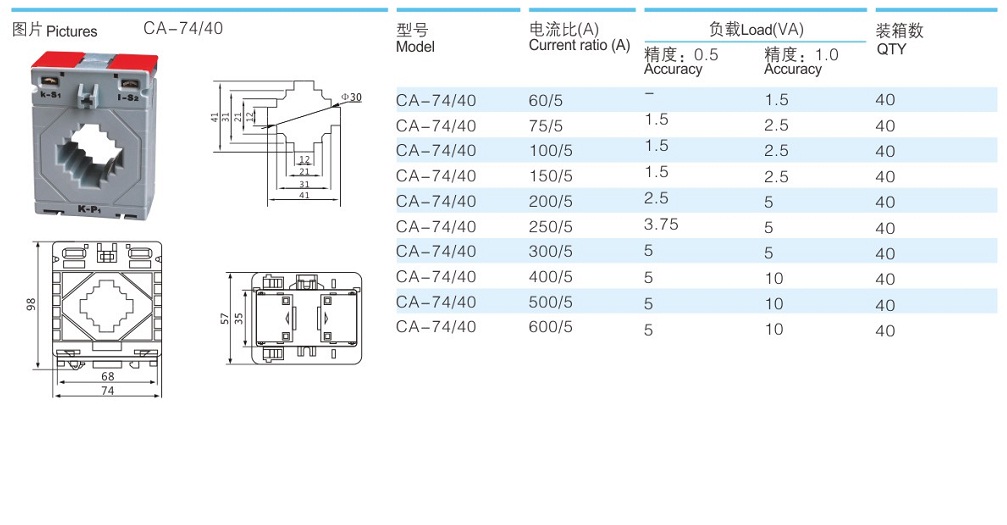

 CURRENT TRANSFORMERS CA/CP-74/40

 Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security

60A-600A
5A,1A
VDE0414,BS7626,IEC44-1
0.72/3KV
50-60Hz
2.5VA,5VA,10VA,15VA
0.5,1.0
Ith=60×Ih
FS<5

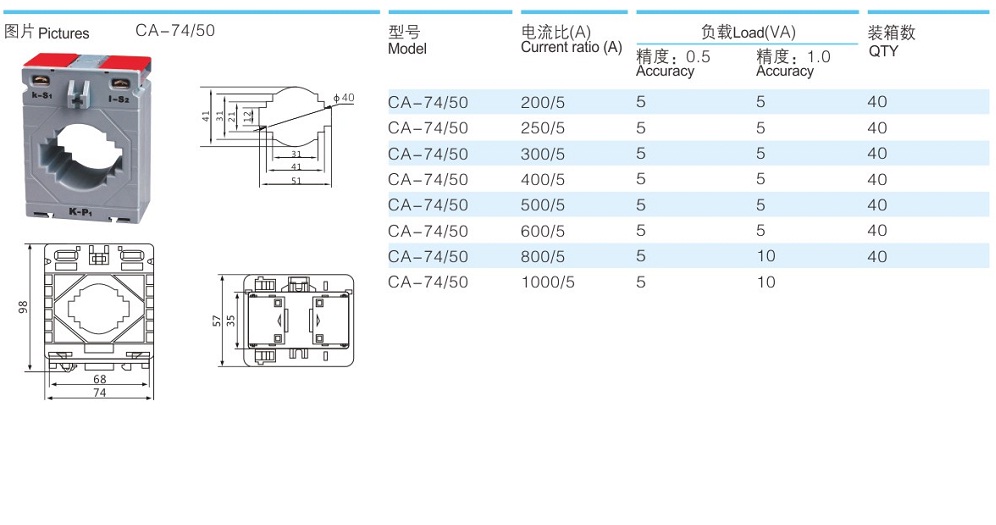

 CURRENT TRANSFORMERS CA/CP-74/50

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security

200A-1000A
5A,1A
VDE0414,BS7626,IEC44-1
0.72/3KV
50-60Hz
2.5VA,5VA,10VA,15VA
0.5,1.0
Ith=60×Ih
FS<5

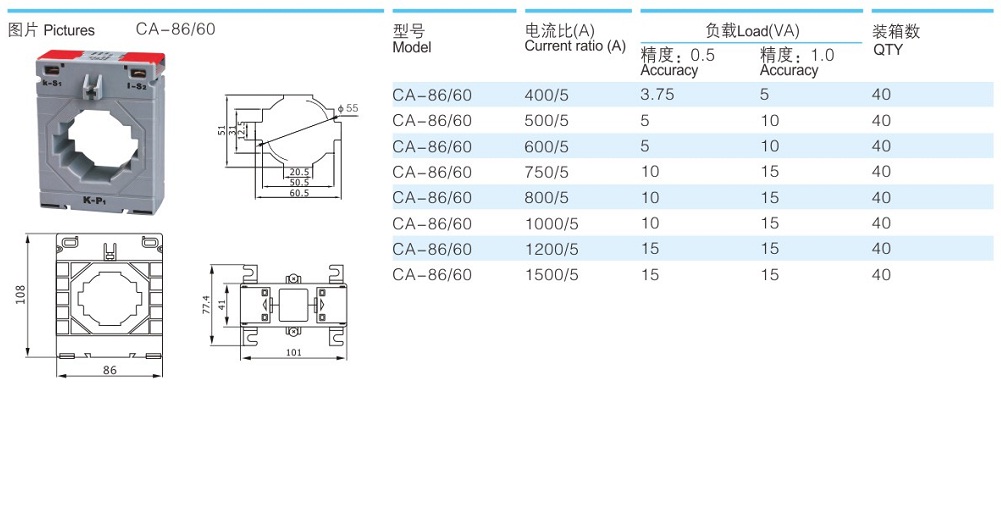

CURRENT TRANSFORMERS CA/CP-86/60

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security

400A-1500A
5A,1A
VDE0414,BS7626,IEC44-1
0.72/3KV
50-60Hz
2.5VA,5VA,10VA,15VA
0.5,1.0
Ith=60×Ih
FS<5

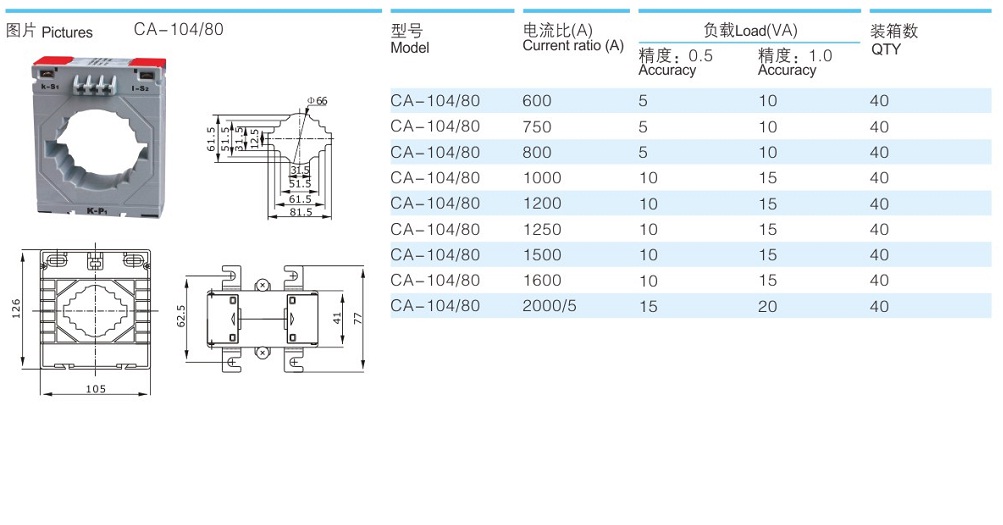

 CURRENT TRANSFORMERS CA/CP-104/80

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security

600A-2000A
5A,1A
VDE0414,BS7626,IEC44-1
0.72/3KV
50-60Hz
2.5VA,5VA,10VA,15VA
0.5,1.0
Ith=60×Ih
FS<5

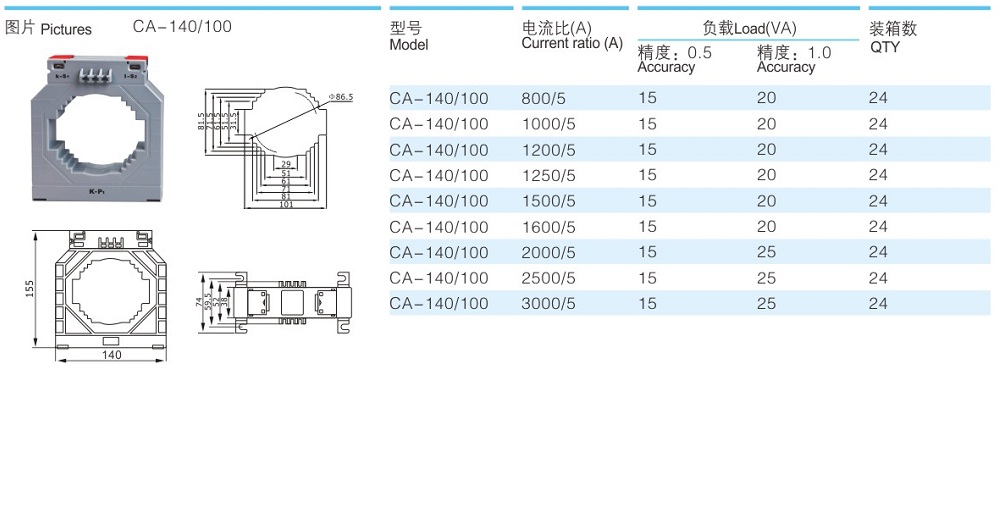

CURRENT TRANSFORMERS CA/CP-140/100



Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security

800A-3000A
5A,1A
VDE0414,BS7626,IEC44-1
0.72/3KV
50-60Hz
2.5VA,5VA,10VA,15VA
0.5,1.0
Ith=60×Ih
FS<5



What is the Current transformer:
Current transformer principle is based on the principle of electromagnetic induction. Current transformer is by the closure of the core and winding composition. It's a winding turns are very few, string in the need to measure the current line, so it often have line of all current through the secondary winding turns more, cascading in measuring instrument and protection circuit, current transformer at work, it's two loop is always closed, so measuring instrument and protection circuit in series with the coil impedance is small, the working state of the current transformer
  Datasheet CA Current Transformer Catalogue Download
