1) Operating Temperature: -40~+140
2) Insert: Brass. Steel with Zn coating
3) Material: BMC ( Bough Moulding Compound )
SMC ( Sheet Moulding Compound )
4) Colour, Insert, material in capability accordance screw with customer needs

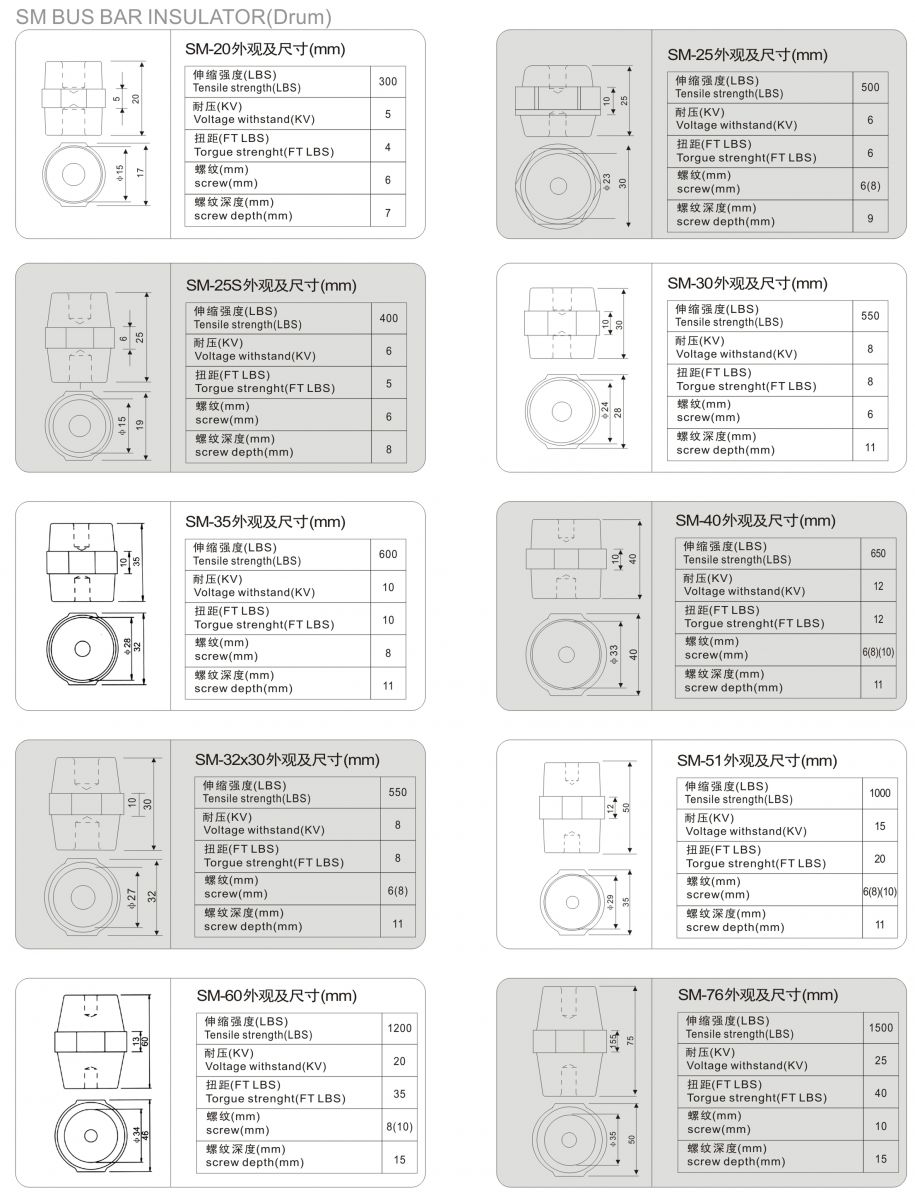

| Model | Tensile Strength(LBS) |
Torque Strength (FT LBS) |
Withstand Voltage(kV) |
Screw |
Case Qty.(pcs) |
| SM25 | 500 | 6 | 6 | M6 | 600 |
| SM30 | 550 | 8 | 8 | M8 | 500 |
| SM35 | 600 | 10 | 10 | M8 | 400 |
| SM40 | 650 | 10 | 12 | M8 | 300 |
| SM45 | 1000 | 20 | 15 | M8 | 300 |
| SM51 | 1000 | 20 | 15 | M8 | 320 |
| SM60 | 1500 | 40 | 10 | M8 | 150 |
| SM76 | 1500 | 40 | 25 | M10 | 120 |
